| Antennas |
|

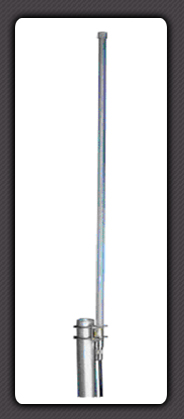

| 2.4GHz
12 dBi Omni-Directional Antenna |
| Model
|
12
dBi Omni |
| Frequency
|
2400-2500
MHz |
| Gain
|
12
dBi |
| Polarization
|
Vertical
|
| Vertical
Beam-width |
8
° |
| Horizontal
Beam-width |
360
° |
| Impedance |
50
Ohm |
| Maximum
Input Power |
50
Watts |
| VSWR |
<1.5:1
average |
| Weight |
1800g |
| Length |
1200mm |
| Radome
Material |
Grey
Fibreglass |
| Wind
Survival |
>200
Km/hr |
| Operating
Temperature |
-40
° C to 85 ° C |
| Connector |
N-Type
Female |
|
| |

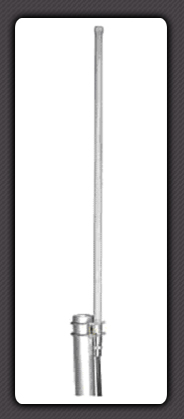

| 2.4GHz
9 dBi Omni-Directional Antenna |
|
| Model
|
9
dBi Omni |
| Frequency
|
2400-2500
MHz |
| Gain
|
9
dBi |
| Polarization
|
Vertical
|
| Vertical
Beam-width |
13
° |
| Horizontal
Beam-width |
360
° |
| Impedance |
50
Ohm |
| Maximum
Input Power |
100
Watts |
| VSWR |
<1.5:1
average |
| Weight |
1100g |
| Length |
700mm |
| Radome
Material |
Grey
Fibre glass |
| Wind
Survival |
>200
Km/hr |
| Operating
Temperature |
-40
° C to 85 ° C |
| Connector |
N-Type
Female |
|
| |
 |
2.4GHz
16 dBi Directional Sector Antenna |
| Model
|
16
dBi Sector |
| Frequency
|
2400-2500
MHz |
| Gain
|
16
dBi |
| Polarization
|
Vertical
|
| Vertical
Beam-width |
13
° |
| Horizontal
Beam-width |
360
° |
| Impedance |
50
Ohm |
| Maximum
Input Power |
200
Watts |
| VSWR |
<1,7:1
|
| Weight |
5000g |
| Length |
1200mm |
| Width |
180mm |
| Breadth |
155mm |
| Radom
Material |
ABS
|
| Wind
Survival |
>200
Km/hr |
| Operating
Temperature |
-40
° C to 85 ° C |
| Connector |
N-Type
Female |
| Material
Reflector |
Aluminum
|
|
| |
| 2.4GHz
6 dBi Indoor Omni-Directional Ceiling Antenna |
|
| Model
|
6
dBi Indoor |
| Frequency
|
2400-2500
MHz |
| Gain
|
6
dBi |
| Polarization
|
Linear,
Vertical |
| Vertical
Beam-width |
63° |
| Horizontal
Beam-width |
360
° |
| Downtilt
|
40
° |
| Impedance |
50
Ohm |
| Power
Handling |
20
W |
| VSWR |
1.8:1
Max |
| Dimensions
|
5.20
x 6.25 inches |
| Weight
|
150g
|
| Cable
Length |
2
Meters |
| Randome
Colour |
White
|
| Radome
Material |
ABS
|
| Wind
Survival |
180
Km/hr |
| Operating
Temperature |
-40°
C to 80 ° C |
| Connector |
SMA
Female |
| Material
Reflector |
Aluminum
|
|
| |
| 19
dbi Parabolic Grid Antenna - 2.4GHz |
|
| Property
|
Value |
| Frequency
Range |
2400
- 2483 Mz |
| VSWR
|
<=
1.5 |
| Polarization
|
Horizontal
& Vertical |
| Gain |
19
dbi |
| Maximum
Input Power |
100
Watts |
| Impedance |
50
Ohm |
| Connector |
N-Female |
| Horizontal
Beam-width |
14° |
| Vertical
Beam-width |
18°
|
| Front-to-back
Ratio |
25
dB |
| Rated
wind-velocity |
60
meters / sec |
| Caliber |
400
mm x 600 mm |
| Weight
(Kg) |
.4
Kg |
| Mounting
Kit |
D40-60
(mm) |
|
| |
 |
18dBi
Flat Panel Antenna - 2.4GHz |
| •
Gain |
18
dBi |
| •
Horizontal Beam |
20
Degrees |
| •
Polarisation |
Vertical / Horizontal |
| •
Vertical Beam |
20
Degrees |
|
| |
